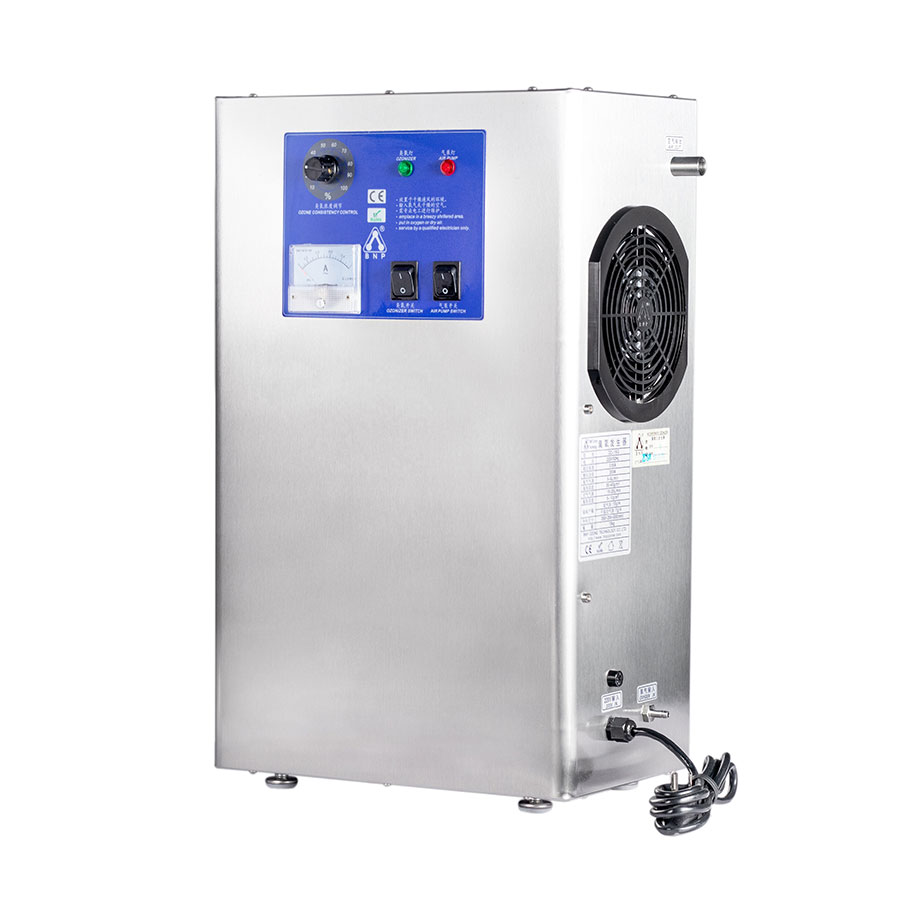

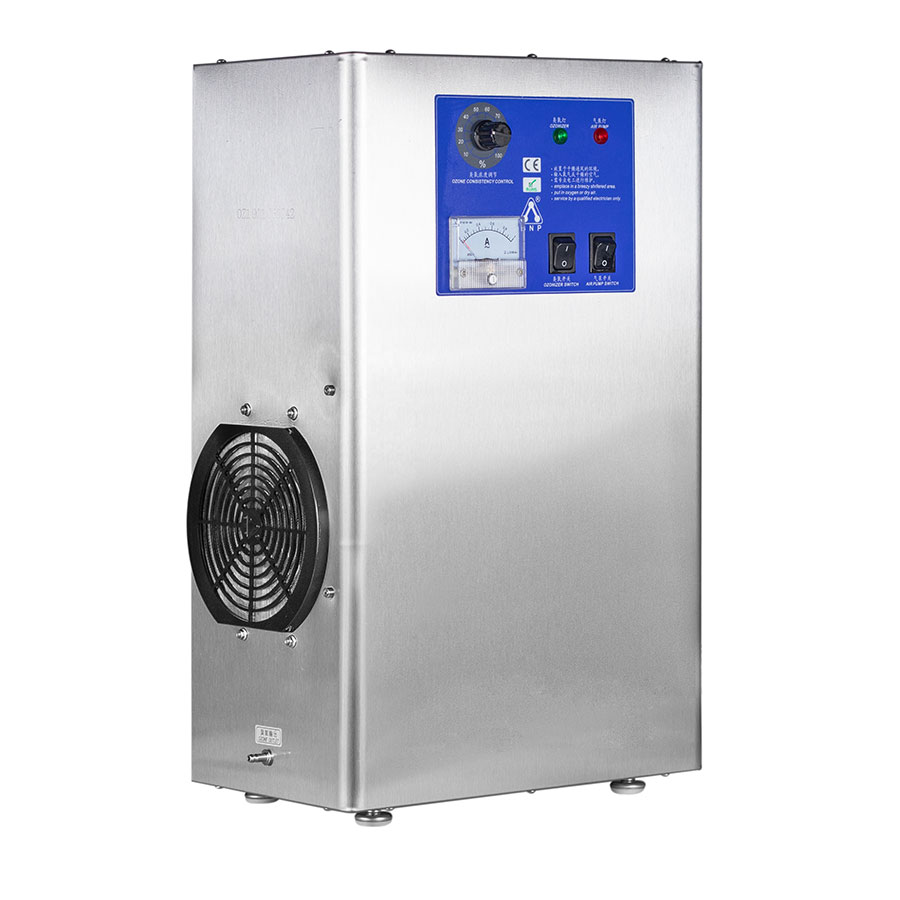

SOZ-10G ozone generator

  • Quick Details Applicable Industries: Hotels Building Material Shops Manufacturing Plant Food Beverage Factory Farms Restaurant Food Shop Food Beverage Shops Place of Origin: China Brand Name: BNP Material: PE+CARTON Stainless Steel
    Product name: ozone generator
    Ozone output:10g
    Power:180w
    Model:SOZ-10G
    Size:350*250*630mm
    Cooling method:air cooling
    Application:yle="color: rgb(51 51 51); font-family: Roboto "Helvetica Neue" Helvetica Tahoma Arial "PingFang SC" "Microsoft YaHei"; white-space: nowrap;">Hotels Building Material Shops Manufacturing Plant Food
  • Contact:l810185168@gmail.com
  • Product information

Quick Details
Applicable Industries:Hotels, Building Material Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Food Shop, Food & Beverage Shops
Place of Origin:China
Brand Name:BNP
Material:PE+CARTON, Stainless Steel 304
Weight:13KG
Size:350*250*630mm
Power:0.18, 220V-380V/50-60Hz
Warranty:1 year
After-sales Service Provided:Video technical support, Online support
Application:Water treatment,air purification
Certification:CE,RoHs
Ozone output from oxygen:5~6g/h
Type:Corona discharge
Package:Carton
Product name:SOZ-10G ozone generator

IGBT technique is adopted in this series of ozone generators. Ozone is generated by corona discharge, and the discharge chamber is composed of de-hydroxyl tube-form generators. Particular anti-backwater design makes it service life much longer than that of ordinary factories. Modular design is adopted in electrical circuit. Dielectric element, pipeline and fastening for conveying ozone are all ozone-resistant to ensure long service life, enough corona density, low temperature, and much higher ozone concentration.



Constituent
3.1 Generator unit (electric board, high-pressure generating unit and the discharging unit), stainless steel cover, 65L air compressor (some products may have not 65L air compressor), current meter, Taiwan 150 blower, connecting pipes, ozone adjustment unit and indicating lamps etc.



Applications:

(1) Swimming pool;

(2) Refrigeratory disinfection;

(3) Medicine, food procession production-line sterilization and oxygenation;

(4) Food equipments, production water, bathroom disinfection;

(5) Prevent mildew and keep fresh on egg, fruits, vegetable, and food.



Major Advantages:

1)  Patented dehydroxylation quartz structure

2) Continously adjustable Ozone output;

3) Air cooling;

4) Stainless steel casing;

5) Long life discharge cell, continuous running;

6) Two type gas source: compressed air or oxygen;

7) 60L/Min air-pump integrated

8) Option for built in drying and heating system

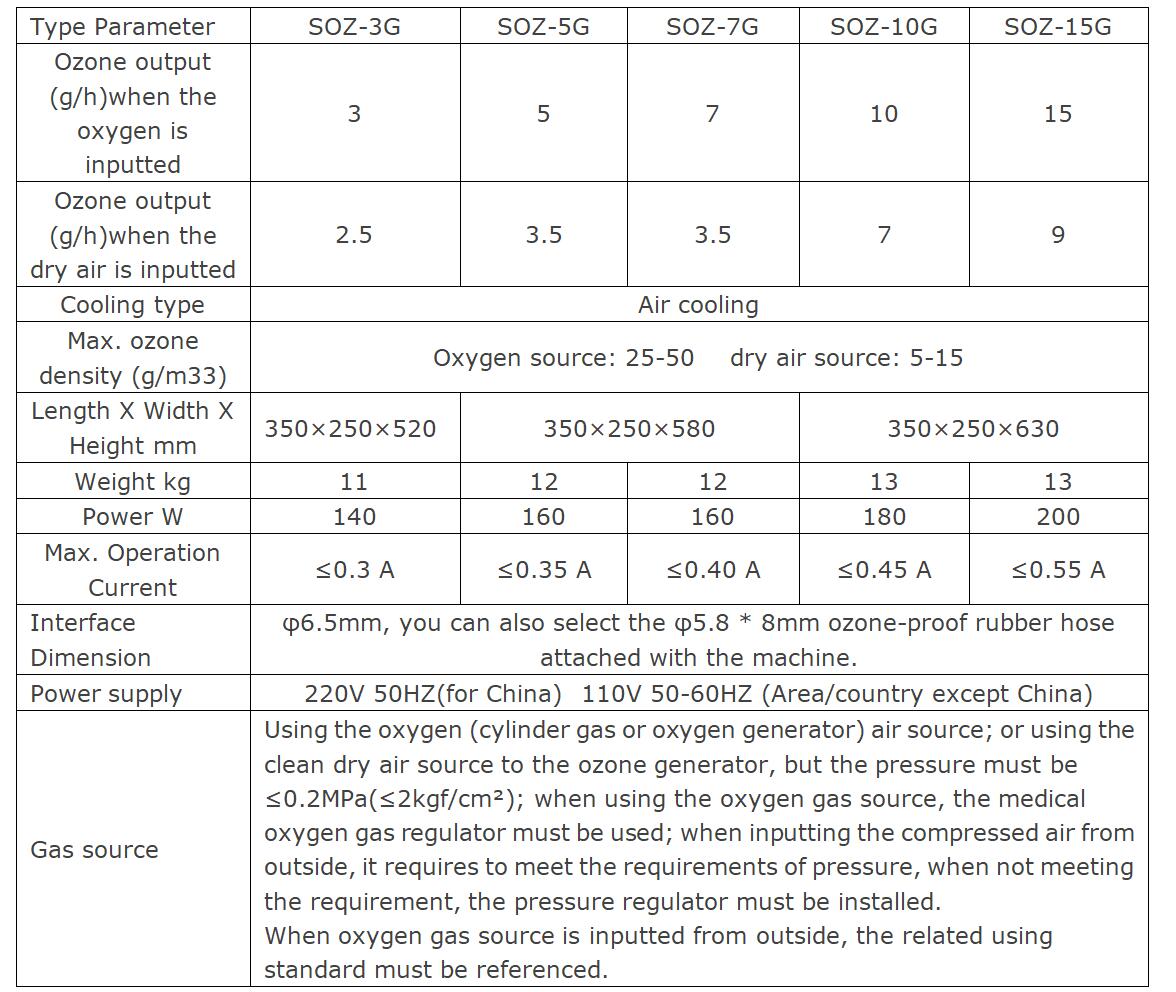

Technical Parameters



Type

Parameter

SOZ-3G

SOZ-5G

SOZ-7G

SOZ-10G

SOZ-15G

Ozone output (g/h)when the oxygen is inputted

3

5

7

10

15

Ozone output (g/h)when the dry air is inputted

2.5

3.5

3.5

7

9

Cooling type

Air cooling

Max. ozone density (g/m33)

Oxygen source: 25-50    dry air source: 5-15

Length X Width X Height mm

350×250×520

350×250×580

350×250×630

Weight kg

11

12

12

13

13

Power W

140

160

160

180

200

Max. Operation Current

≤0.3 A

≤0.35 A

≤0.40 A

≤0.45 A

≤0.55 A

Interface Dimension

φ6.5mm, you can also select the φ5.8 * 8mm ozone-proof rubber hose attached with the machine.

Power supply

220V 50HZ(for China)  110V 50-60HZ (Area/country except China)

Gas source

Using the oxygen (cylinder gas or oxygen generator) air source; or using the clean dry air source to the ozone generator, but the pressure must be ≤0.2MPa(≤2kgf/cm²); when using the oxygen gas source, the medical oxygen gas regulator must be used; when inputting the compressed air from outside, it requires to meet the requirements of pressure, when not meeting the requirement, the pressure regulator must be installed.

When oxygen gas source is inputted from outside, the related using standard must be referenced.




How to use the product



1. No air dryer, no oxygen source. And ozone will be generated though the ambient air.



2.  Order our SOZ-D series product and there is inbuit heated dryer. And ozone will be generated through dry air.



3. Use external air dryer, for example, silica gel if necessary.



4. Use oxygen source if nesessary.
